Thermal Putty

Features：

This product is made of metal oxides and polyorganosiloxanes with good thermal conductivity and insulation properties.
  • Thermal conductivity 3.0W/(m.K)
  • Excellent electrical insulation
  • Wide operating temperature: Operating temperature -50～200°C
  • Do not dry at high temperatures, no oil
  • Non-toxic, odorless, non-corrosive and environmentally friendly.
Add to inquiry box


Features：

This product is made of metal oxides and polyorganosiloxanes with good thermal conductivity and insulation properties.
  • Thermal conductivity 3.0W/(m.K)
  • Excellent electrical insulation
  • Wide operating temperature: Operating temperature -50～200°C
  • Do not dry at high temperatures, no oil
  • Non-toxic, odorless, non-corrosive and environmentally friendly.

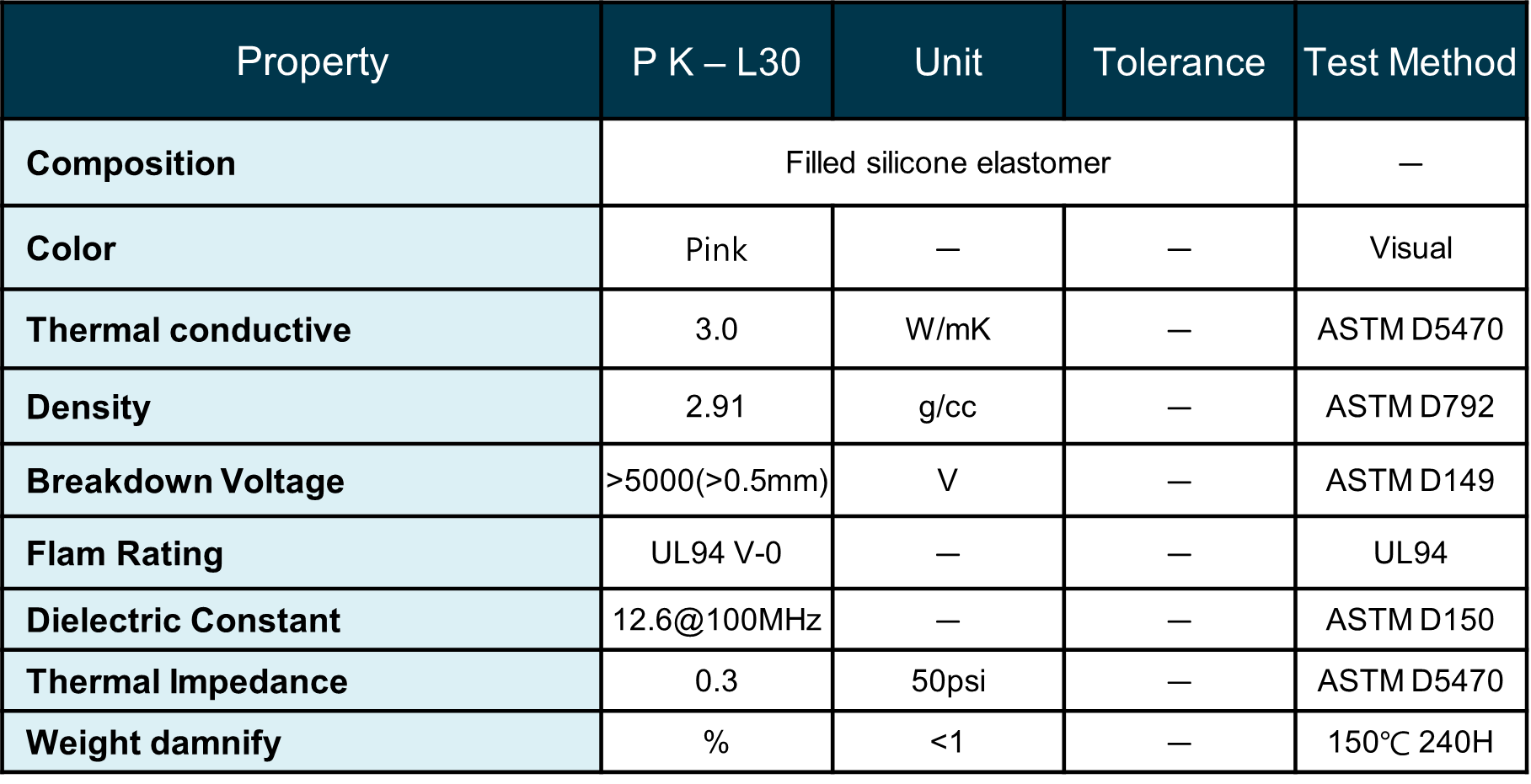

Production information

Applications

  • Widely used as a heat transfer medium for electronic components, such as CPU and heat sinks, high-power triodes, controllable germanium diodes and substrate (aluminum, copper) contact gap filling, reducing the operating temperature of the heating element, High viscosity type, especially suitable for manual dispensing.


Using process

  • Clean the surface to be coated to remove oil stains
  • For smoother dispensing, it is recommended to use the iron bar to fully stir 2min2min2min2min before dispensing the machine.
  • Then the thermal grease can be directly extruded on the surface to be coated.
  • Note that the construction surface should be uniform, as long as it is coated with a thin layer.


Packing specification

  • 1KG/barrel


Storage and transportation

  • The storage period of this product is 1 year (25°C).
  • Such products are non-dangerous and can be transported as general chemicals.


Precautions

  • The use of thermal grease is not as good as possible, but it should be as thin as possible while ensuring that the gap is filled.
